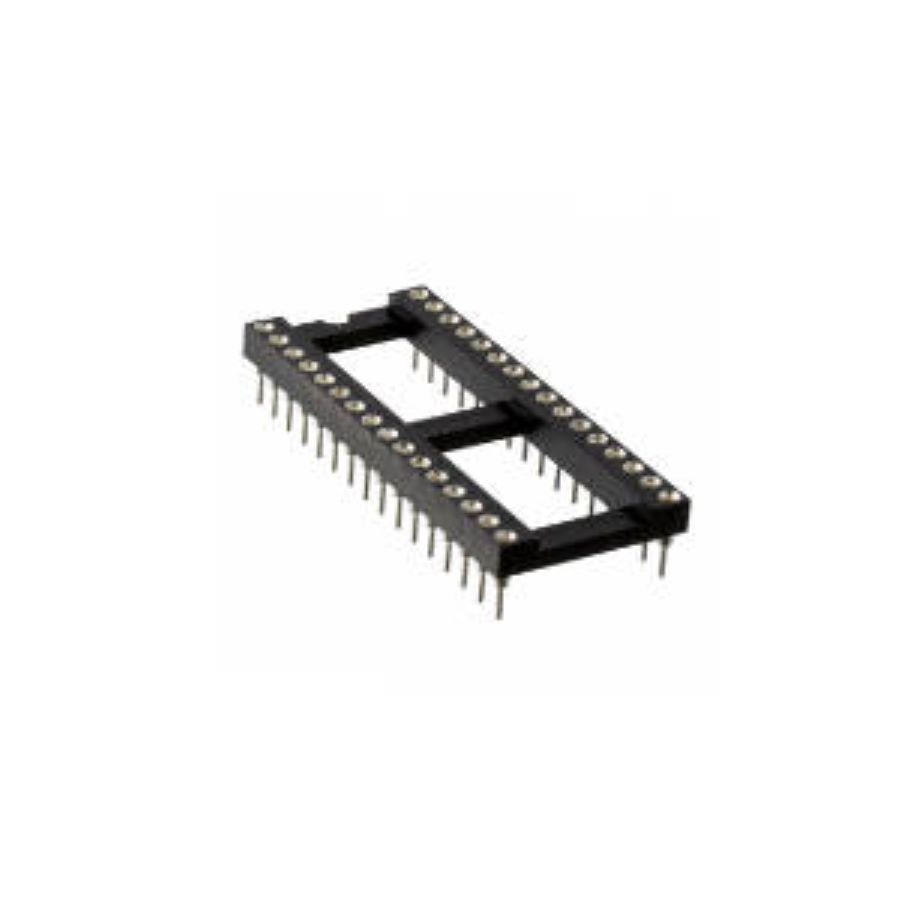

SA326000
Manufacturer:
On Shore Technology
Mfr.Part #:
SA326000
Datasheet:
Description:
IC and Component Sockets Through Hole DIP Number of Positions:32 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 32 |
| Packaging | Tube |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Connector Type | DIP |
| Number of Positions | 32 |
| Housing Material | Glass |
| Contact Resistance | 4 mΩ |
| Schedule B | 8536695050 |
| Contact Finish - Mating | Tin |
Stock: 169
Distributors
pcbx
pcbxUnit Price$0.96388
Ext.Price$0.96388
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96388 | $0.96388 |
| 10 | $0.89042 | $8.90420 |
| 25 | $0.82256 | $20.56400 |
| 50 | $0.75987 | $37.99350 |
| 100 | $0.70196 | $70.19600 |
| 300 | $0.64846 | $194.53800 |
| 500 | $0.59904 | $299.52000 |
| 1000 | $0.55340 | $553.40000 |
